A planetary stage is often treated as a simple collection of gears until a replacement part runs hot, becomes noisy or shifts the load onto one planet branch. This guide focuses on ratio relationships, fixed members and why tooth-count arithmetic must match the real configuration. It is written to help a buyer, design engineer or maintenance team define the problem in measurable terms before comparing suppliers. The goal is not to turn every application into the same catalogue selection, but to show which evidence changes the technical decision and which assumptions should remain open until the actual drawing or duty data is available.

The core topic is planetary gear ratio. In practice, it touches tooth-count relationship, fixed ring versus fixed sun configurations, carrier speed, and usually at least one of relative angular velocity, compound stage ratios or sign convention and rotation direction. These factors are linked. A correction to one item can improve one failure mode while worsening another, which is why planetary gearing should be reviewed as a stage rather than as a single isolated tooth count.

Start With the Real Power Path

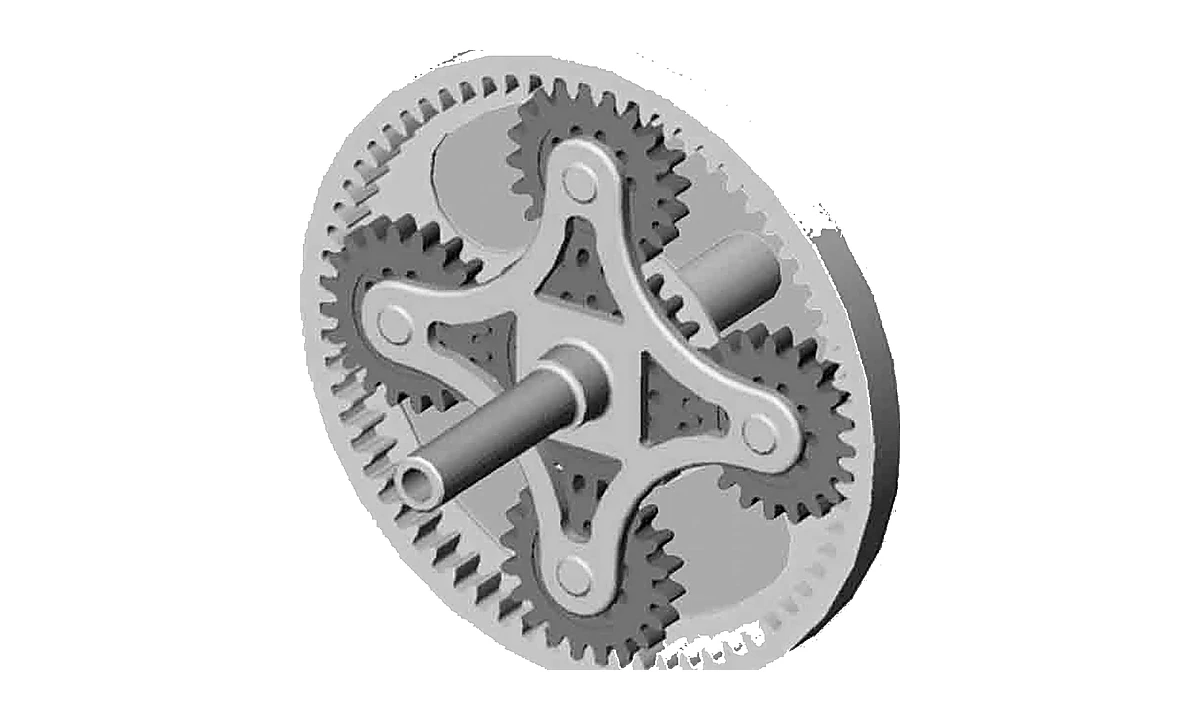

A conventional planetary stage contains a central sun gear, multiple planet gears, an internal ring gear and a carrier. Torque is split across the planet branches and recombined through the carrier or another active member. That architecture makes the transmission compact, but it also means the stage reacts through several structural paths at once. When reviewing planetary gear ratio, first identify the driven member, the held member and the output member. Without that configuration, a ratio or torque statement can be misleading because the same tooth counts can produce different kinematic behavior under a different fixed-member arrangement.

For ratio relationships, fixed members and why tooth-count arithmetic must match the real configuration, the load path should be traced from the input interface through every mesh and bearing support to the output and housing reaction. Record where tooth-count relationship enters the problem and how fixed ring versus fixed sun configurations changes under continuous torque, peak torque, reversal or coast-down. This makes it easier to decide whether the limiting issue is tooth stress, bearing reaction, carrier stiffness, spline fit, lubrication, thermal behavior or a combination of these. It also prevents the common procurement error of solving a visible tooth defect while leaving its root cause in the assembly.

View the Related Planetary Gear Product

The Measurements That Matter

Useful specifications connect a requirement to a method of verification. For this topic, that means turning phrases such as “high precision,” “heavy duty,” or “low noise” into drawing features, operating values and inspection evidence. Depending on the project, the important controls may include tooth-count relationship, fixed ring versus fixed sun configurations, carrier speed, relative angular velocity. The chosen controls should be tied to the functional datums of the assembly. A gear-quality value measured from an arbitrary surface is less useful than a slightly broader inspection plan referenced to the bore, spline, pin circle or other datum that actually locates the gear in service.

When an old sample is the only evidence, separate original geometry from wear. Polished flanks, pitting, plastic deformation, fretted bores and damaged spline teeth can move measurements away from the intended design. Whenever possible, compare several teeth, both faces, multiple mating members and unworn reference surfaces. For planetary gear ratio, photographs of the contact pattern and the assembly orientation can be as important as a single dimensional report because they show whether the problem is distributed or localized.

How Manufacturing Variation Enters the Stage

Planetary transmissions combine several tolerances in one compact assembly. A small change in tooth-count relationship may interact with carrier speed, while relative angular velocity can shift the contact toward one side of the face width. Manufacturing planning therefore needs a datum chain, a heat-treatment strategy and a final inspection route that are consistent with how the part functions. Hard finishing should not be specified automatically; it is used when the material, hardness, gear quality and economics justify it. The same principle applies to grinding, honing, lapping, shaping and other processes.

Set-level consistency is especially important when multiple planet gears share load. If planets come from different revisions or manufacturing states, the assembly can acquire unequal backlash or load distribution even when each part appears individually acceptable. For ratio relationships, fixed members and why tooth-count arithmetic must match the real configuration, lot control and identification can therefore be part of the technical solution. This is one reason a matched set is often the lower-risk purchase when the original stage is badly worn or its maintenance history is uncertain.

Application Conditions Change the Answer

A solution that works in a steady industrial reducer may be unsuitable for a servo axis, crawler final drive, wheel hub or slewing system. Servo duty emphasizes reversing behavior, stiffness and positioning. Mobile equipment adds shock, sealing and field contamination. Slewing duty can combine high ratios with intermittent peaks and brake reactions. Continuous industrial drives make thermal capacity and oil condition more visible. The design review for planetary gear ratio should therefore name the machine, not just the gearbox.

Provide input speed range, continuous output torque, peak or starting torque, starts per hour, reversing frequency, duty cycle, ambient temperature, mounting position, lubricant, expected life, radial and axial loads, and any external brake or motor interface. Where these values are not yet known, mark them as open items instead of substituting a value from a visually similar product. This makes the quotation traceable and reduces rework when the machine team later supplies the real duty data.

Compare Planetary Gear Set Options

What to Look for During Failure Analysis

Failure evidence should be collected before parts are cleaned aggressively or discarded. For ratio relationships, fixed members and why tooth-count arithmetic must match the real configuration, look for asymmetric contact, localized pitting, scuffing, root cracks, debris indentation, fretting at interfaces, discoloration, bearing damage and looseness at pins or splines. The location of the damage relative to load direction can help separate overload from misalignment or lubrication problems. Oil samples, filter debris and vibration trends add context when they are available.

A broken gear is not always the initiating failure. A bearing that loses stiffness can move the mesh; a carrier pin can wear and change planet position; a housing can distort under bolt load; or an oil-feed path can starve one mesh. The inspection should therefore extend beyond the visibly damaged member. If the gear is replaced without correcting the cause, the new part may fail faster because its unworn geometry initially carries load over a smaller region of the damaged mating component.

Supplier RFQ Checklist for This Topic

• Geometry: drawing or verified values for tooth counts, module/DP, pressure angle, tooth form and the interfaces relevant to tooth-count relationship.
• Accuracy: drawing tolerance, gear-quality requirement and the measurement datum needed to evaluate fixed ring versus fixed sun configurations.
• Material route: specified material and heat treatment, including hardness or case requirements when controlled by the design.
• Duty: continuous and peak torque, input speed, reversing, starts per hour, duty cycle, temperature and lubrication.
• Mating evidence: the sun, planets, ring and carrier data that influence the same mesh, especially when only one failed part is being purchased.
• Quantity and traceability: prototype, service batch or production quantity, drawing revision and required inspection records.

A useful additional public reference is this planetary gear system overview. Use it as background context rather than as a substitute for the drawing and duty data of the current project.

A Decision Path That Avoids Rework

First, define the failure, performance target or replacement need. Second, establish authoritative geometry from drawings, samples and mating parts. Third, connect the required duty to the load path and identify which controls are actually critical for planetary gear ratio. Fourth, define manufacturing and inspection around the functional datums. Fifth, review the complete mating set and assembly before final release. This sequence is slower than guessing from a photo, but it is faster than repeating machining after a mismatch is found during assembly.

For new designs, the same discipline helps prevent over-specification. A very tight gear-quality grade, aggressive heat-treatment requirement or complex finishing route can increase cost without improving machine performance if the housing, bearings or carrier do not support the same precision. Conversely, a seemingly small tolerance can be critical when it governs load sharing or output positioning. The engineering objective is to place precision where it changes the stage behavior, not to make every dimension equally tight.

Send Your Drawings for Review

Questions to Answer Before Releasing the Order

• Which member is input, which is fixed, and which is output in the stage related to planetary gear ratio?
• Which drawing or sample defines tooth-count relationship, and is that evidence from the current revision?
• How will fixed ring versus fixed sun configurations be verified at incoming inspection or final assembly?
• Does the duty include shock, reversal, braking or temperature conditions that change the acceptance of carrier speed?
• Are the mating gears, carrier, bearings and interfaces still serviceable, or should the replacement scope include a matched set?
• What inspection record must travel with the shipment so the receiving team can confirm identity and critical characteristics?

Request a Manufacturing Review

EVER POWER can review planetary gear drawings, samples and operating information for manufacturing feasibility and quotation. Send the available files, quantity, destination and duty information to [email protected]. If the project is a replacement, include photographs before disassembly and note whether the sun, planets, ring, carrier and bearings are available for inspection. Missing values will be identified for confirmation rather than silently estimated.
